RLF3000 Red Light Panel
- Regular price
- €1.695,00
- Sale price
- €1.695,00
- Regular price
The RLF3000 is the full-body panel in the Dermfix RLF range. It stands 150cm tall and 42cm wide, which is enough to cover a standing adult from shoulders to ankles in one position — front, then back. Nothing is repositioned mid-session and no area is treated twice by accident.
It runs the same seven-wavelength engine as the rest of the range. What the extra size buys is treated area per session, and a deeper control set built around 11 preset modes and three programmes you can save yourself.
Measured output

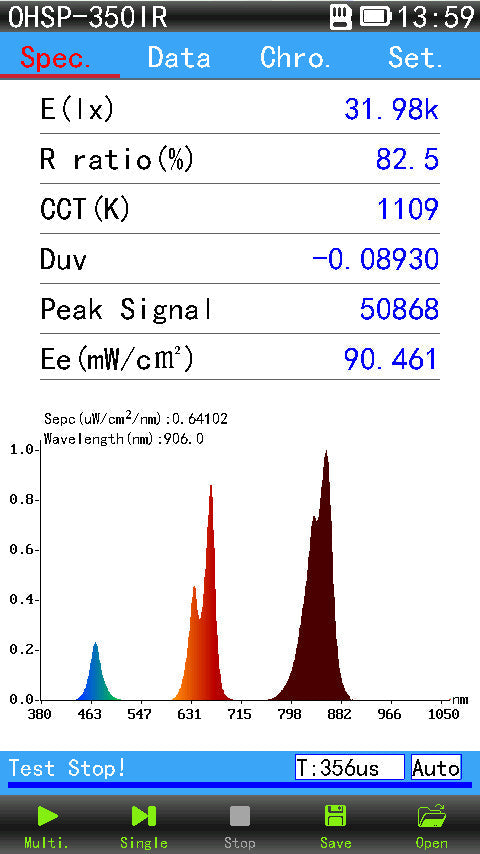

90 mW/cm² at 15cm, measured on a Hopoocolor OHSP350IR spectrometer.
Wavelengths
Seven wavelengths across 600 dual-chip LEDs, each independently dimmable from 0 to 100%:
| 480nm | Blue, visible. Surface absorption. |
| 630nm | Red, visible. Absorbed in the epidermis and upper dermis. |
| 660nm | Red, visible. Slightly deeper than 630nm. |
| 810nm | Near-infrared, not visible. Penetrates beyond the dermis. |
| 830nm | Near-infrared, not visible. |
| 850nm | Near-infrared, not visible. The most widely studied NIR wavelength. |
| 1060nm | Near-infrared, not visible. Longest wavelength in the range. |
Wavelengths can be run singly or in combination. Most users work with red and near-infrared together; the blue channel is separate and is not required for a standard session.
Controls

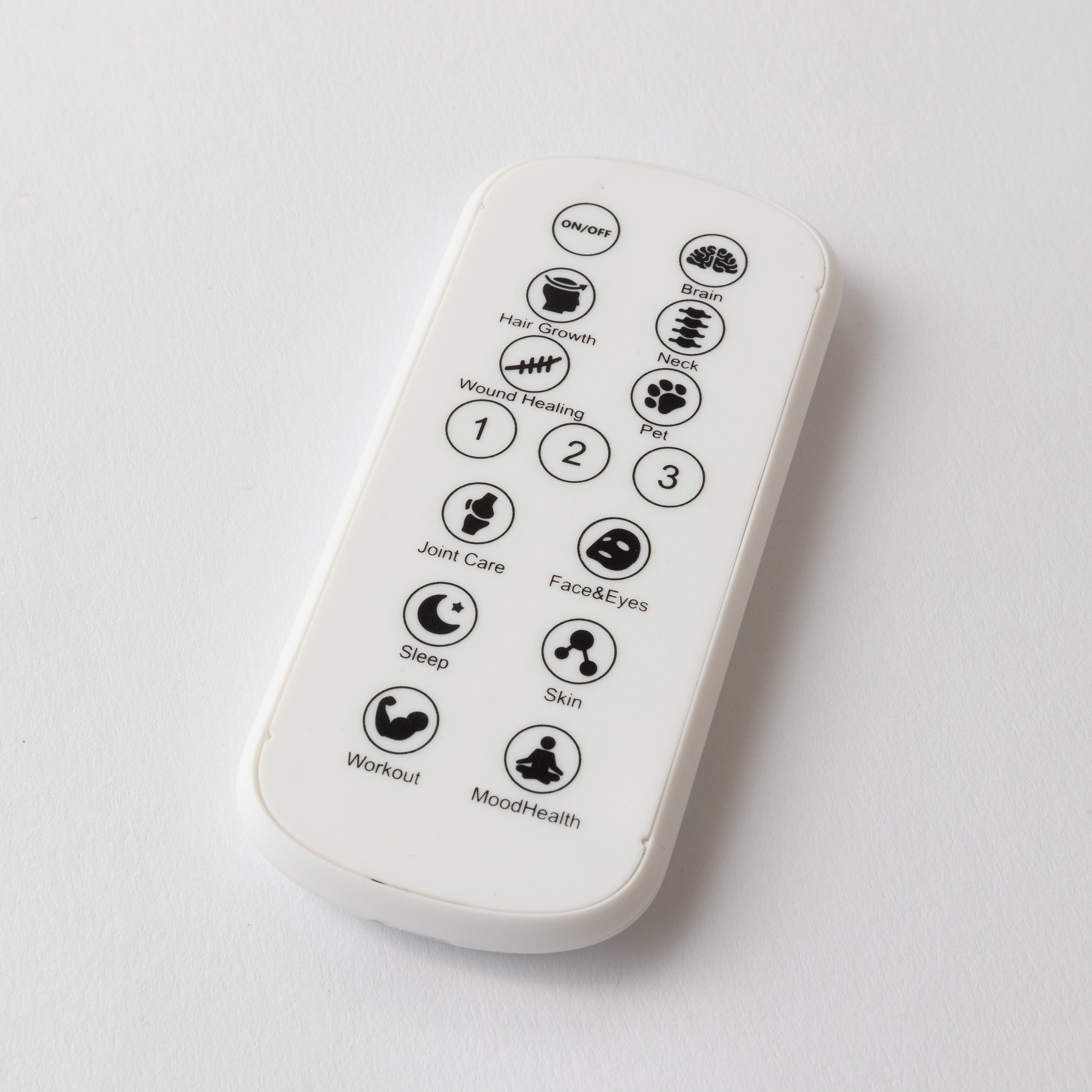

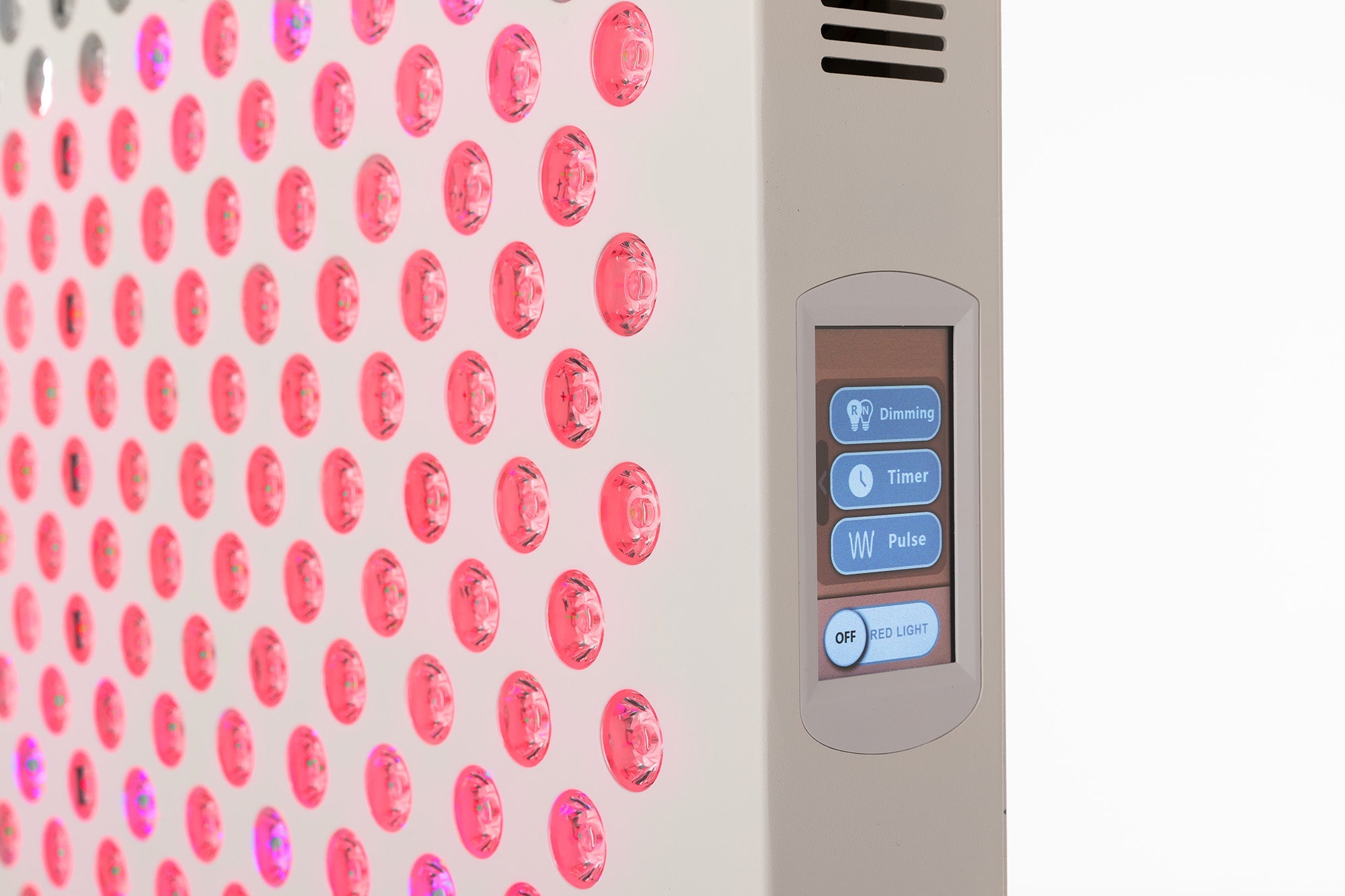

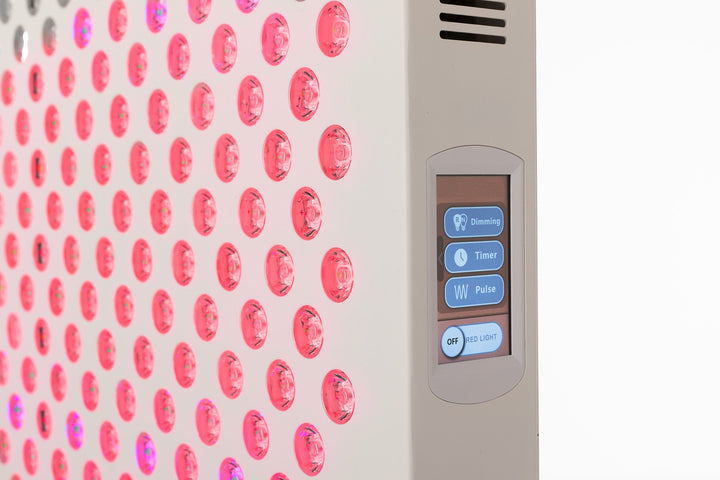

A touchscreen on the panel and a handheld remote give the same functions. Dimming runs 0–100% on each wavelength. Near-infrared pulsing is adjustable from 0 to 9999Hz. The timer runs 1–30 minutes and shuts the panel off at the end of the session.
Eleven preset modes come loaded on the panel. Each one is a fixed combination of wavelengths and intensities, so a routine can be started from a single selection rather than dialling in seven channels by hand every time. Three further slots are left empty for you: set the channels how you want them, save the arrangement, and recall it later. On a full-body panel used by more than one person, or for more than one routine, having settings stored rather than rebuilt each session is what makes it practical day to day.
The LEDs are flicker-free, which matters if the panel is used in the same room as a camera or by anyone sensitive to light modulation.
Specification
| LEDs | 600 × 5W dual-chip |
| Wavelengths | 480, 630, 660, 810, 830, 850, 1060nm |
| Irradiance | 90 mW/cm² at 15cm (spectrometer) |
| Beam angle | 30° |
| Power draw | 935W |
| Supply | 220–240V, 50/60Hz. EU plug fitted as standard (or CH) |
| Dimensions | 150 × 42 × 6.6cm |
| Weight | 21.5kg |
| Presets | 11 preset modes, 3 saveable user programmes |
| LED lifespan | 50,000 hours |
| Timer | 1–30 minutes |
| Pulsing | 0–9999Hz (near-infrared) |
| Housing | Metal, IP20 |
| Standards | CE: EN 60335-2-27, EMC, RoHS |
| Warranty | 3 years |
| Stock | Held in the EU (Germany) |
Mounting

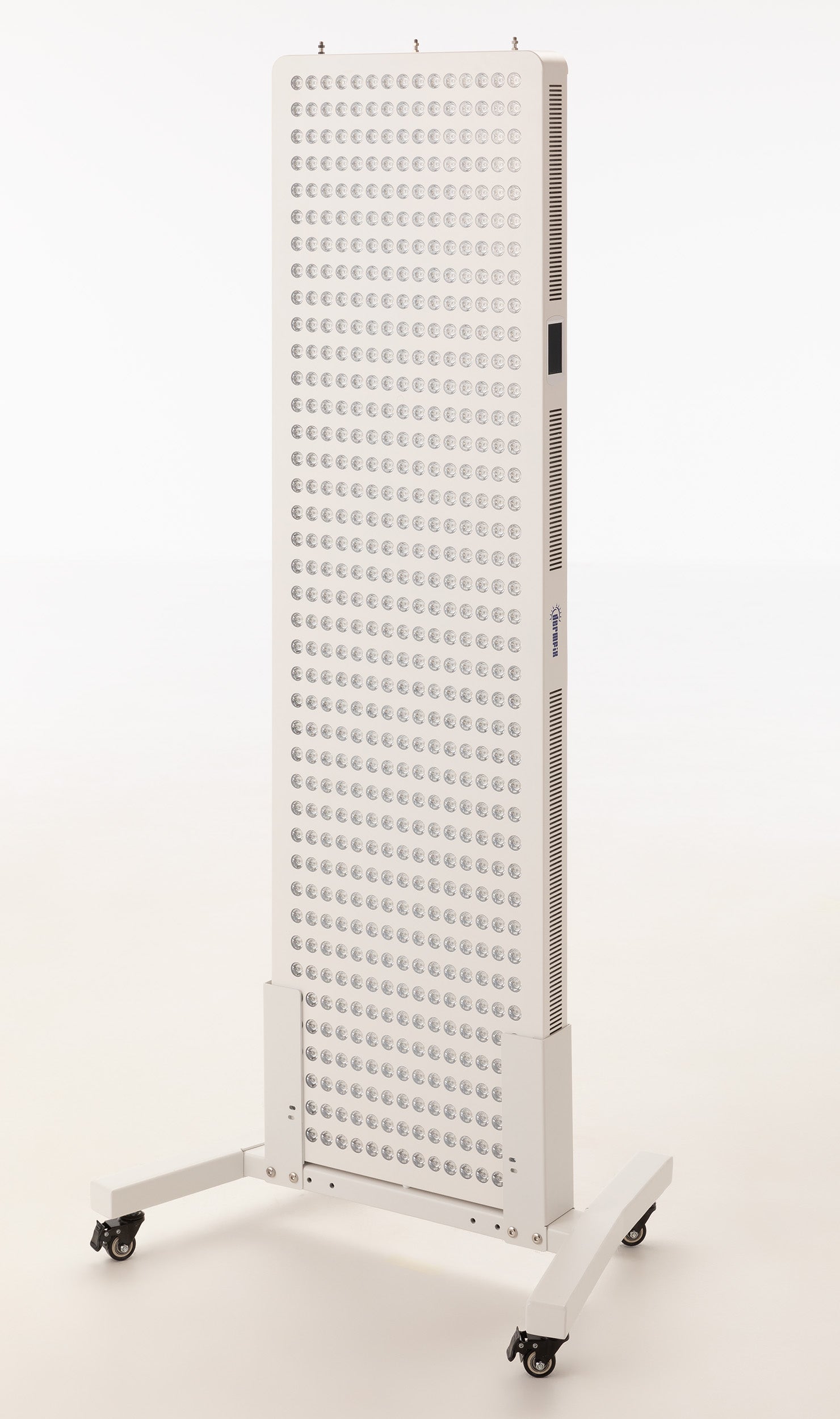

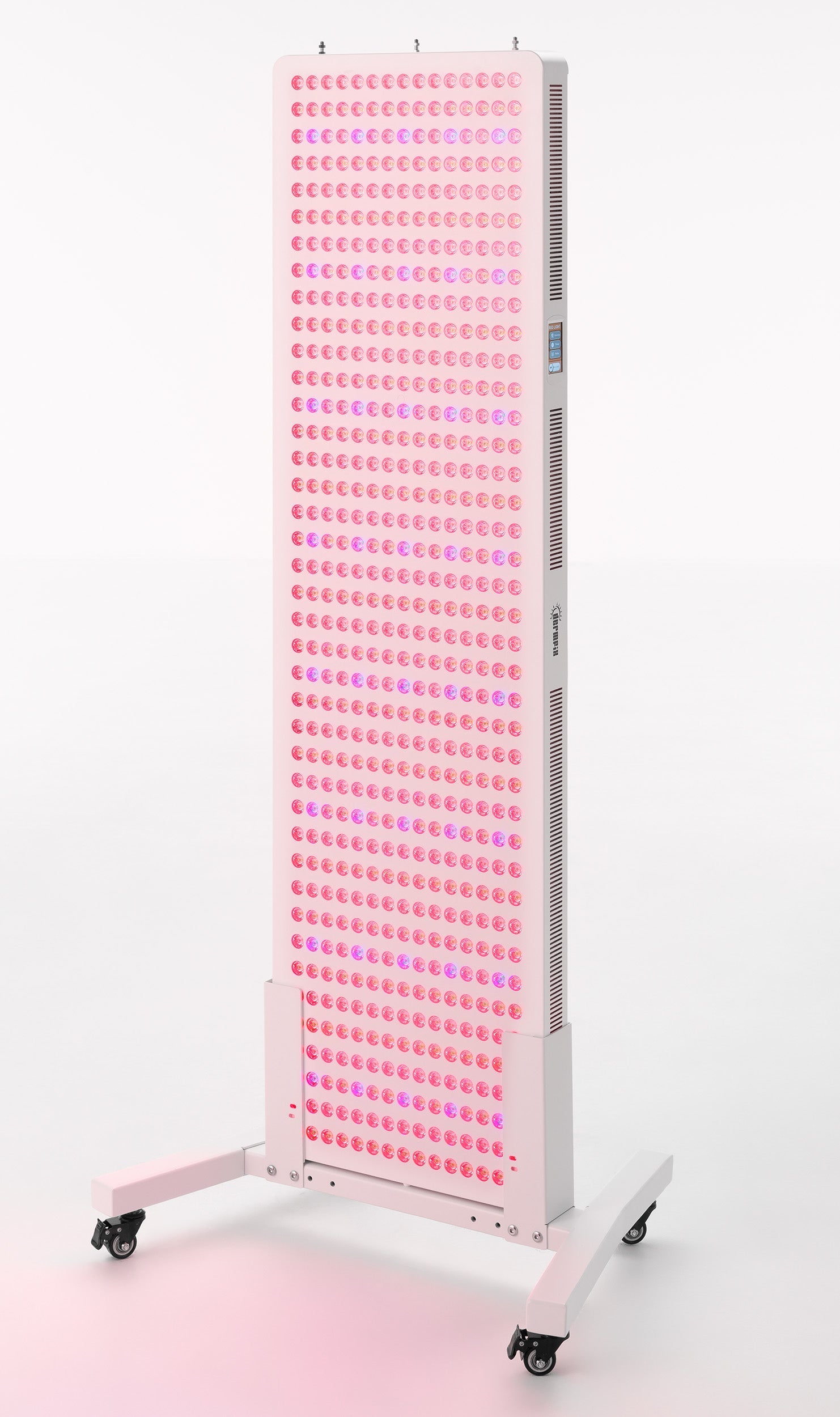

At 150cm and 21.5kg the RLF3000 is a floor-stand panel. Four stands take it:
| Wide base stand | Castors and a 50kg capacity. Rolls out of the way between sessions. |
| Pneumatic floor stand | Foot-lever height adjustment from 97.5cm to 136cm, and holds the panel horizontally or vertically. |
| Vertical floor stand | Fixed vertical mounting for standing full-body use. |
| Motorised floor stand | Powered height adjustment. |
Stocks are held and shipped from our warehouse in Germany
CE, RoHS, EMC & LVD certified

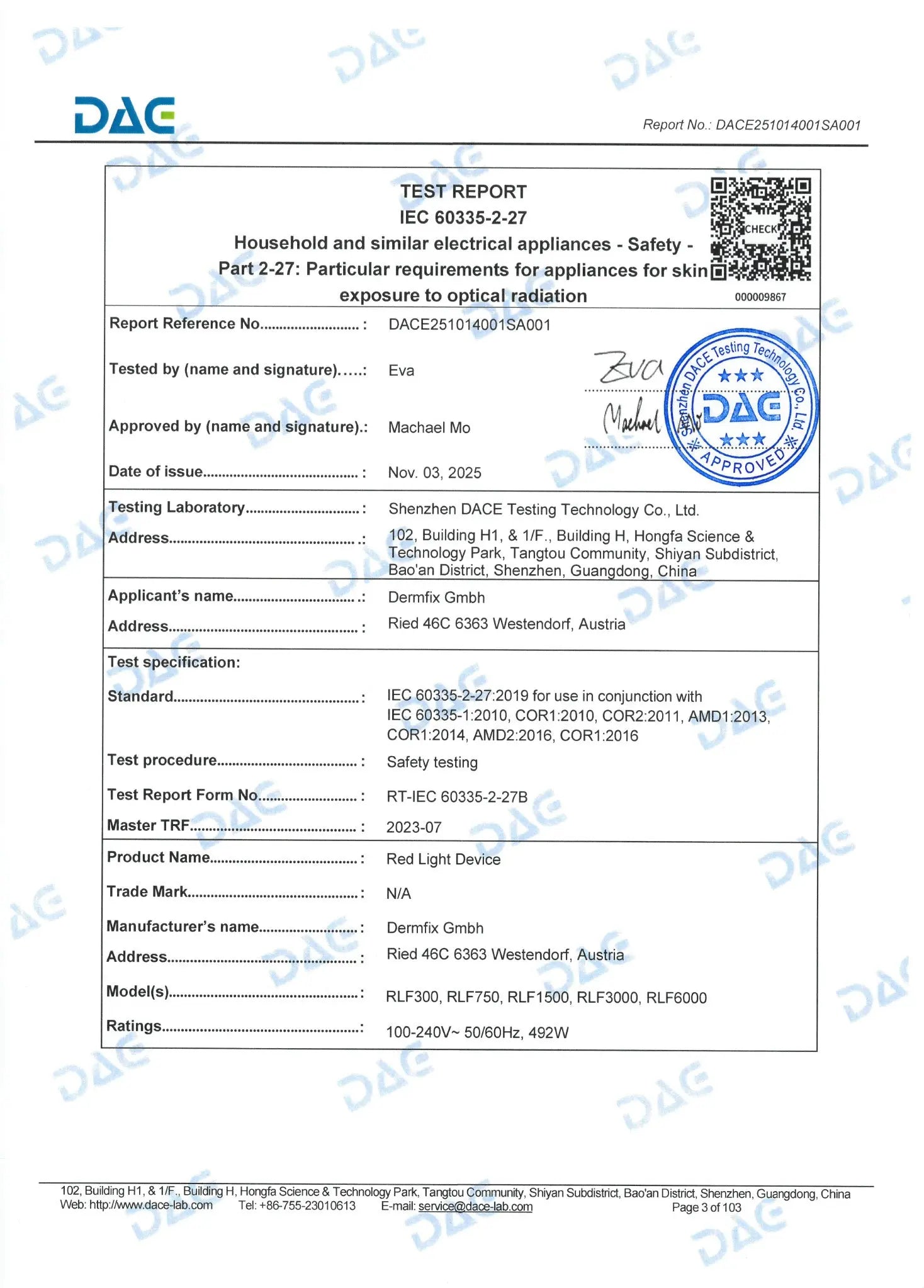

EN 60335-2-27 skin-safety certified
Spectrometer-verified irradiance
